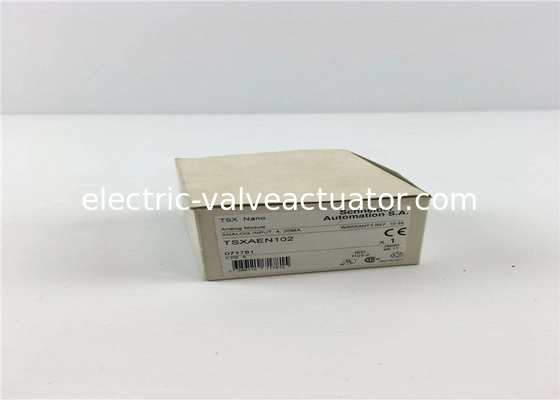

Schneider Electric TSXAEN102 TSX-AEN ANALOG I O INPUT 4 to 20MA

Name: Schneider Electric TSXAEN102 TSX-AEN ANALOG I O INPUT 4 to 20MA
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: TSXAEN102
Price: 210.00 USD
Availability: InStock

Brand Name:	Schneider
Model Number:	TSXAEN102
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

France

Range Of Product:

Modicon Premium

Packaging Details:

New original box

Highlight:

Schneider Electric TSX-AEN analog input module

4-20mA analog I/O module

TSXAEN102 low voltage protection device

Product Description

Schneider Electric TSXAEN102 TSX-AEN ANALOG I/O INPUT 4 to 20MA

Product Overview

Modular base controller for the Modicon TSX Micro automation platform with advanced analog I/O capabilities.

Contractual Warranty: 18 months

Technical Specifications

Primary Voltage	24 V (19.2–30 V DC)
Input Current	2 mA / 60 A
Immunity to Microbreaks	10 ms
Complementary Slots	3

I/O Configuration

Analog Input: 0-10 V (8 channels)
Analog Output: 0-10 V (1 channel)
Counting Input: Discrete incremental counter (1 channel @ 10 Hz)

Communication

1 serial link (TER/AUX) Uni-Telway @ 19.2 kbit/s
1 Modbus RTU @ 19.2 kbit/s

Performance

Realtime Clock	Included
Memory	Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage
Execution Time	0.13 µs Boolean (without PCMCIA) 4.5 µs arithmetic REAL floating 0.19 µs Boolean (with PCMCIA)
