Fire XBD-DL High Speed Multistage Centrifugal Pump Horizontal Single Outlet

Product Details:

Place of Origin:	China
Brand Name:	KAIQUAN
Model Number:	XBD-DL Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden box packing
Delivery Time:	25 days after signing the contract
Payment Terms:	T/T
Supply Ability:	1000sets

Contact Now

Detailed Product Description

Range Of Head:

<=127m

Range Of Quantity:

1.8~2000m3/h

High Light:

electromagnetic brakes

electro hydraulic machinery

Fire XBD-DL High Speed Multistage Centrifugal Pump Horizontal Single Outlet

Compared with previous fire pumps, XBDseries features a reduced outlet pressure difference among pumps of the same quantity of flow, as small as 0.05MPaonly. Thanks to increased spectrum density and more reasonable distribution, this series is better adapted to fire fighting needs at different floors and to pipe resistance, and makes itself a better choice in design. The products of XBDseries have reached the leading level and feature a small footprint, light weight, low noise, high performance, reliable operation and other advantages.

Applicable conditions

Range of quantity:2.5L—200L/S

Range of pressure:0.11—2.38Mpa

Liquid temperature: ≤80℃ clean water

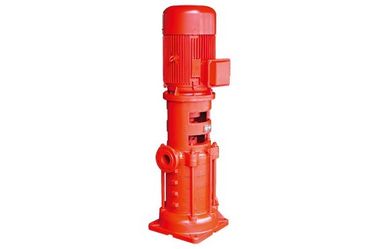

●The XBDseries centrifugal fire pumps are divided into; vertical single-stage, vertical multi-stage single-outlet, horizontal multi-stage single-outlet, vertical multistage multi-outlet, horizontal multi-stage multi-outlet types

●Copper alloy impellers, copper alloy seal rings, and stainless steel shafts are used for XBDseries centrifugal fire pump to ensure “it starts running any time”

●The vertical/horizontal multi-stage multi-outlet series meet the needs of sectional and different pressures for high-rise buildings

●The intermediate outlets of the horizontal multi-stage multi-outlet series can be mounted in two ways: upright, horizontal

●The end and intermediate outlets of the vertical multi-stage multi-outlet series can be mounted in four directions: 0°, 90°, 180° and 270° in relation with the suction direction

●The vertical multi-stage series is suitable for compact mounting spaces
