| Voltage Rating: | 250,50 VAC|VDC | Actuator Type: | Push-Pull |
|---|---|---|---|
| Supplier Standard Pack: | 25 | Current Rating: | 7.5 A |
| Mounting: | Panel Mount | RoHS: | Yes |
| Type: | Thermal | Terminal Design: | Screw |
| High Light: | W23-X1A1G-3 Thermal Circuit Breaker,50Amps Thermal Circuit Breaker,Push Pull Thermal Circuit Breaker |
||
Electrical Data @ +25°C
Calibration: Will continuously carry *** of rating, may trip between
101% and 134% of rating at 25°C. Must trip at 135% in
one hour.
Maximum Operating Voltages: 50VDC or 240VAC (to 400 Hz).
Interrupting Capacity:
With 4X Max. Series Fuse Protection
0.5-50 amp models — 1000 amps at 240VAC.
30-50 amp models — 1000 amps at 50VDC.
Without 4X Max. Series Fuse Protection
0.5-25 amp models — 2000 amps at 50VDC.
10-20 amp models — 2000 amps at 120VAC.
Resettable Overload Capacity: Ten times rated current.
Dielectric Strength: Over 1,500 volts RMS.
Mechanical/Environmental Data
Endurance Cycling: More than 6,000 cycles at *** of rating, or 10,000
mechanical cycles.
Humidity: Will meet requirements of MIL-STD-202, Method 106.
Salt Spray: Will meet requirements of MIL-STD-202, Method 101, Test
Condition B.
Termination: Two #8-32 screw terminals.
Mounting: W23 — Threaded bushing, 3/8” (9.53mm) diameter.
W31 — Threaded bushing, 15/32” (11.91mm) diameter, with or
without anti-rotation flats.
Weight: Less than 2 oz. (57g).

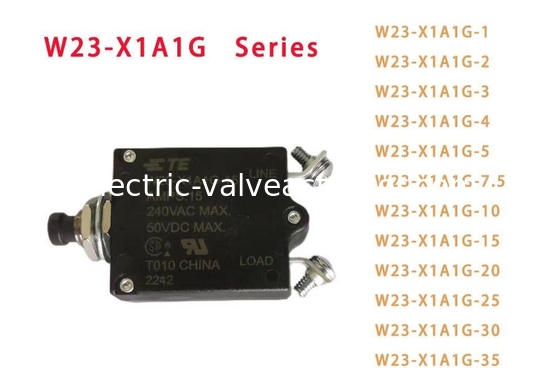

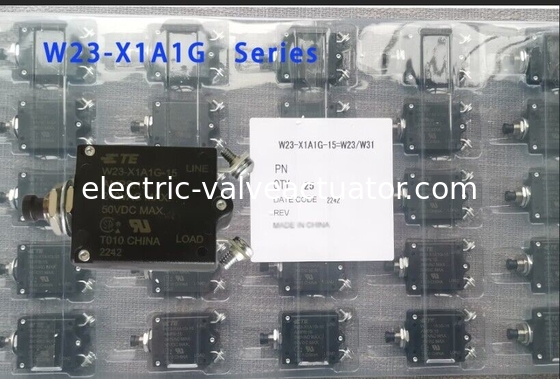

TE thermal circuit breaker W23 series
W23-X1A1G-1
W23-X1A1G-2
W23-X1A1G-3
W23-X1A1G-5
W23 X1A1G - 7.5
W23-X1A1G-10
W23-X1A1G-15
W23-X1A1G-20
W23-X1A1G-25
W23-X1A1G-30
W23-X1A1G-35
W23-X1A1G-40
W23-X1A1G-50
W23-X1A3G-1
W23-X1A3G-2
W23-X1A3G-3
W23-X1A3G-5
W23 X1A3G - 7.5
W23-X1A3G-10
W23-X1A3G-15
W23-X1A3G-20
W23-X1A3G-25
W23-X1A3G-30
W23-X1A3G-35
W23-X1A3G-40
W23-X1A3G-50
W23-X1A1A-1
W23-X1A1A-2
W23-X1A1A-3
W23-X1A1A-5
W23 X1A1A - 7.5
W23-X1A1A-10
W23-X1A1A-15
W23-X1A1A-20
W23-X1A1A-25
W23-X1A1A-30
W23-X1A1A-35
W23-X1A1A-40
W23-X1A1A-50
W23-X1A3A-1
W23-X1A3A-2
W23-X1A3A-3
W23-X1A3A-5
W23 X1A3A - 7.5
W23-X1A3A-10
W23-X1A3A-15
W23-X1A3A-20
W23-X1A3A-25
W23-X1A3A-30
W23-X1A3A-35
W23-X1A3A-40
W23-X1A3A-50
| Operating Temperature | N/A |
| Voltage Rating | 250,50 VAC|VDC |
| Actuator Type | Push-Pull |
| Supplier Standard Pack | 25 |
| Current Rating | 7.5 A |
| RoHS | Yes |
| Mounting | Panel Mount |
| Type | Thermal |
| Screening Level | N/A |
| Packaging | N/A |
| Terminal Design | Screw |
| Supplier | TE Connectivity / P&B |
| Part No | W23-X1A1G-7.50 |
| Number of Poles | 1 |
| Trip Time | 6s to 22s |
Tyco Electronic Control Relays, model number KUEP-3D35-24, offer superior performance in a variety of applications. This relay has a weight of 0.85KG. It operates within a temperature range of -25℃-70℃, with a contact capacity of 5A/10A/15A/20A. It is constructed with a dielectric strength of 2000VAC/1min and a humidity of ≤85%RH. It is the perfect choice for applications that require a reliable, durable, and secure connection.
Tyco's KUEP-3D35-24 relays are ideal for use in industrial automation and control systems. It is compatible with other Tyco products such as the KUP-11A55-120 TE Connectivity and KUP-14A15-120 TE Connectivity relays. The relay is also compatible with the KUP-14A35-120 TE Connectivity relay. The KUEP-3D35-24 relays are the perfect choice for applications that require reliable, durable, and secure connections.
Tyco's KUEP-3D35-24 relays offer superior performance in a variety of applications. It is designed for use in industrial automation and control systems. The relay is constructed with a dielectric strength of 2000VAC/1min and a humidity of ≤85%RH. It is compatible with other Tyco products such as the KUP-11A55-120 TE Connectivity and KUP-14A15-120 TE Connectivity relays. The KUEP-3D35-24 relays are the perfect choice for applications that require reliable, durable, and secure connections.
