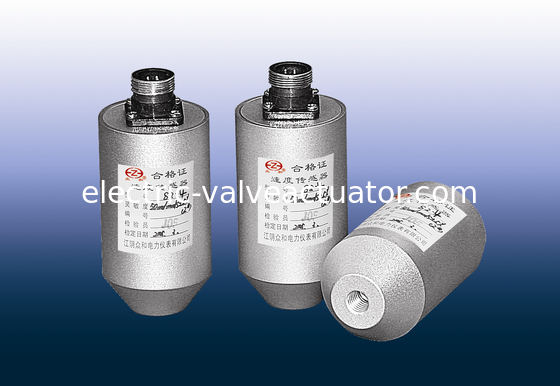

SZ-4 series magnetoelectric speed sensor

  SZ-4 magnetoelectric speed sensor is an inertial sensor that utilizes the principle of magnetoelectric induction to transform vibration signals into voltage signals, which are proportional to the vibration speed value. This sensor can be used to measure mechanical vibrations with speeds as low as 5Hz.

MAIN SPECIFICATION

1. The output signal is proportional to the vibration speed, which can balance the vibration measurement fields of high frequency, medium frequency, and low frequency.

2. The SZ-4 series sensors have lower output impedance and better signal-to-noise ratio. There are no special requirements for output plugs and cables, making them easy to use.

3. The design of the sensor eliminates frictional moving components, resulting in good flexibility and the ability to measure small vibrations (0.01mm).

4. The sensor has a certain ability to resist lateral vibration (not greater than 10g peak)

TECHNICAL PARAMETERS

■ Sensitive :50mV/mm/sec±5%；

Testing method :(temperature 20℃±5℃,at 80Hz,speed is 10mm / s )

■ Amplitude limit:≤2000μm (peak-peak)；

■ frequency response:(4~1000)Hz；

■ Maximum acceleration:10g；

■ measurement direction:SZ–4V(Vertical)

SZ–4H(Horizontal )

■ Installation method: Use an M10 in the center hole at the bottom of the sensor × 1 screw fixation;

■ Environmental conditions: dustproof and moisture-proof

■ Usage temperature: (-30~120) ℃;

■ Relative humidity: ≤ 95% (non condensing);

■ External dimensions: Φ thirty-five × 78mm;

■ Weight: 200g.

Order guide

Order code: SZ-4V (vertical)

SZ-4H (horizontal)

Install screw drawing Outline Drawing
