Place of Origin: | China |
Brand Name: | Zhonghe |

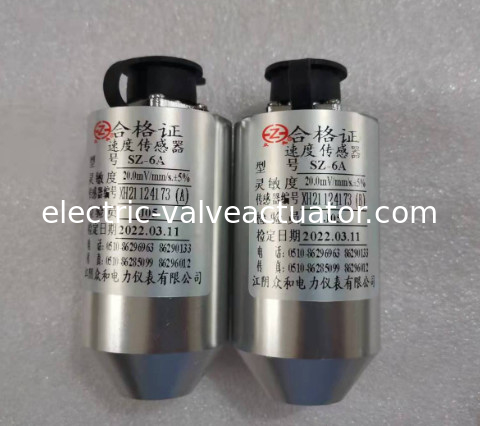

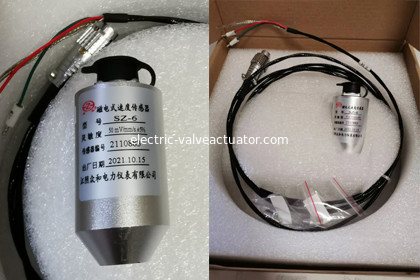

Model Number: | SZ-6 SZ-6A SZ-6G |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Wooden box packing |
Delivery Time: | 15 days after signing the contract |
Payment Terms: | T/T |
Supply Ability: | 1000sets |
Model: | SZ-6 SZ-6A SZ-6G | Sentivity: | 50mV/mm/s |
---|---|---|---|
Working Temp.: | (-30 ~ 120)℃ | Install Direction: | Vertical Or Horizontal |
Protection: | IP65 | Weight: | 200g |
Install Size: | M10×1 | Brand: | Zhonghe |
High Light: | SZ Series Electromagnetic Velocity Sensor,IP65 Electromagnetic Velocity Sensor,Electromagnetic Rotary Encoder Speed |
2 MAIN FUNCTIONS
2.1 Its output signal is proportional to the vibration velocity, and it can take account of the field ofhigh-frequency, intermediate frequency and low-frequency vibration measurement.
2.2 The SZ series sensors have a lower output impedance and a better signal-to-noise ratio. Withoutspecial requirements on output plugs and cables, it is easy to use.
2.3 This sensor canceled activities friction components in design, so its flexibility is good, you canmeasure the slight vibration (0.0lmm).
2.4 The sensor has a certain anti-lateral vibration capability (not more than 10g peak).
2.5 It can be used to measure the vibration of the bearing housing, enclosure or structure (relative toabsolute vibration of inertial space). It can be directly mounted on the outside of the machine, andmaintenance is extremely easy.
3 SPECIFICATIONS
3.1 Sensitivity:
SZ-2: 30mV/mm/s, error: + 5%;
SZ-6: 50mV/mm/s, error士5%;
SZ-4V SZ-4H: 28.5mV/mm/s, error+5%;
3.2 Test conditions: temperature 20C+5C (80Hz, speed 10mm/s)3.3 Amplitude: < 2000um (P-P);
3.4 Frequency response: SZ-2,SZ-: (10~500) Hz;SZ-4VSZ-4H:(4~1000) Hz:
3.5 Maximum Acceleration: 10g;
3.6 Measuring direction: SZ-2(Vertical or HorizontalSZ-6(Vertical or Horizontal)SZ-4V (Vertical)SZ-4H(Horizontal)
3.7 Use environment: (-30 ~ 120) C.
3.8 Relative humidity <95% (non-condensation);
3.9 Operation environment: No corrosive, no strong magnetic field in the surrounding:
3.10 Dimensions: 35x 77 (mm).
3.11 Weight: about 200g.
3.12 Install: SZ series electromagnetic type speed sensor is fixed at the bottom of the sensor centerhole with a M10x1 screws.
