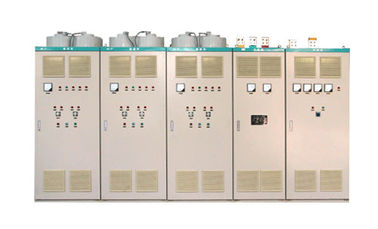

GEDS series of rectifier eliminate magnetic devices AC, DC busbar

GEDS series of rectifier eliminate magnetic devices AC, DC busbar

Silicon diode is neither parallel nor series, no-pressure problems and reduce Rectifier loss.

- Self-developed the online air gap adjustable reactor so that the inter-flow coefficient is above 0.95 (0.85 GB request).

- Rectifier devices and eliminate magnetic devices integration design, compact.

- A unique two-piece by a master fan with a backup fan and automatically switch throttle design, dual power supply, little noise, convenience overhaul.

- DC high-voltage capacitors absorb Burr over-voltage, good effect, small loss.

- Big system design cushion, three counters Rectifier condition, a natural cooling fan stopped, the system can still operate normally.

- AC, DC busbar by the whole Cu row, reducing the number of joints, improve operational reliability

- AC, DC busbar layout in the insulation busslot, the use of fire-retardant-closed bridge structure of bus, which can effectively prevent short circuit accidents.

- Silver plated copper contacts and then plating conductive film processing, can effectively reduce contact resistance and extended service life.

- AC side of the rectifier cabinet layout ME air switch, DC side layout HH15P isolation switch to replace the traditional switch, secure, reliable, convenient maintenance.

-Demagnetization cabinet install zinc oxide over-voltage protection, self-develope and produce a new generation of dedicated anti magnetoresistance, sufficient to meet Magnetic energy absorption in the no-load condition of misuse strong magnetic field, and the small size can be installed in the same demagnetization cabinet with DM4 or DMX eliminate magnetic switch, compared with the traditional way, save a cabinet, reducing the area
