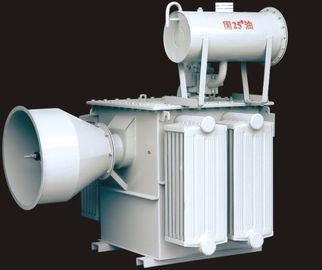

High Voltage Electrostatic Precipitator Silicon Rectifier Equipment ESP Controller For Power Plant GGaj02-0.2A / 72KV H

High Voltage Electrostatic Precipitator Silicon Rectifier Equipment ESP Controller For Power Plant GGaj02-0.2A / 72KV  HN

0.1-0.4A Rectifier transformer 2KΩ/ 500W

0.6-0.8A Rectifier transformer 1KΩ/1200W

1.0-1.6A Rectifier transformer  700Ω/2800W

1.8-2.0A Rectifier transformer  500Ω/3000W

Other parameters can be quickly customized

TM-I Series high voltage electrostatic precipitator silicon rectifier automatic power supply device .
GGAJ02(TM-I)type electrostatic precipitator with automatic silicon rectifier power supply device is the development of automatic intelligent control system on the basis of comprehensive domestic and foreign similar new products.This product basic function is that change 380V AC industrial frequency power supply to high voltage DC power and ouput ,In the selection of appropriate electrodes and other mechanical device,matching the composition of high-voltage electrostatic dust removal equipment,Apply to industrial dust, mist, dehydration,impurity separation and recovery of rare metal and other raw materials and other aspects of the application. It is protecting environment, development of the comprehensive utilization and sustainable development of key equipment .

1. High voltage silicon rectifier equipment is composed of high voltage silicon rectifier and a thyristor automatic control system. The basic function is that change industrial frequency power supply to high voltage DC power and ouput.2. Circuit high impedance transformers can effectively suppress the short-circuit current and improve the waveform,the tank adopts the international popular corrugated fin which not only can reduce weight, also can improve the heat dissipation effect, in order to reduce the volume. 3. Rectifier transformer iron core structure with low loss in the sloping form with special CNC shearing production line . The high voltage silicon stacks of rectifier transformer using epoxy resin encapsulation avalanche diode average voltage module with high reliability, good heat dissipation effect and modeling. Rectifier transformer assembly line is equipped with a full set of vacuum drying,transformer oil filtration and drying filling and detection device. 4. High voltage silicon rectifier transformer is arranged in the electric dust top or indoor , out shell protection class IP54 , silicon rectifier becomes high impedance,   side output or top output line .5. High voltage silicon rectifier transformer roller for flat wheel (rail wheels), it can rotatory 90degree . rolling direction and the high pressure side bushing in parallel . 6. High voltage silicon rectifier transformer is provided with a temperature alarm device, if oil temperature is higher than  70℃ , then alarm ,if higher than 85℃, then ut off the high voltage power supply and send out sound and light alarm signal
7. Rectifier transformer oil select ＃25 or ＃45 oil . 8. High voltage silicon rectifier transformer set: light gas alarm,heavy gas tripping, and send out sound and light alarm signal.9. Nominal output voltage 72KV rectifier transformer primary with three taps : 60KV grade ,66KV grade,72KV grade.

Type definition (for example : GGAj02-1.0A／72kV-HN(HW))GGAj02: Rectifier substation specific serial number；
G : High voltage ；
G : Silicon rectifier type
1.0A: Rated ouput current ；
72kV: Rated output voltage； HN: Indoor type (Low layout)；HW: Outdoor type (High layout)According to user requirements can be ordered a full series rated output voltage rectifier transformer :80KV,100KV,120KV
