RVEX electric resilient seated gate power station valve grey cast iron 50 - 400mm

RVEX electric resilient seated gate power station valve grey cast iron 50 - 400mm

  • RVEX electric resilient seated gate power station valve grey cast iron 50 - 400mm
RVEX electric resilient seated gate power station valve grey cast iron 50 - 400mm
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: RVEX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box
Delivery Time: Within 15days
Payment Terms: T/T
Supply Ability: 1000pcs / month
Contact Now
Detailed Product Description
High Light:

gate check valve

,

gate globe valve

RVEX electric resilient seated gate construction, petroleum, chemicals, food, pharmacy, textile power station valve grey cast iron



Material

Serial no.

Part

Material

1

Body

Grey cast iron, ductile cast iron, cast steel

2

Disc

Ductile cast iron packed with rubber or EPDM outside

3

Stem

Stainless steel

4

Cover

Grey cast iron, ductile cast iron, cast steel

5

Support

Grey cast iron, ductile cast iron, cast steel

6

Electric actuator





seated gate valve can be equipped with all kinds of electric actuator to clients' requirements to realize long-distance control and automatic control.It has the features such as quickness, liableness and easy installation etc..It is widely used in tap water industry, sewage treatmen, shipping, construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluid.



Material

Main technic-al parameters


Nominal pressure: 1.0-2.5MPaWorking temp.:0-120Flanged end:GB/T17241.6 GB9113, ASME 16.5 etc..
Nominal diameter: 50-400mmService:water, oils, gas etc..Inspection and test:GB 13927 API 598

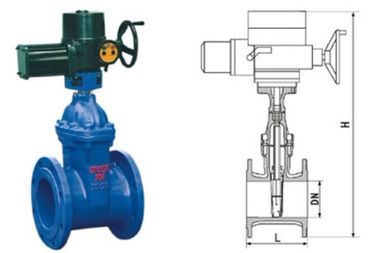

Main dimensionsunit:mm



DN

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L

178

190

203

229

254

267

292

330

356

381

406

432

457

508

H(full open)

732

773

820

870

915

1003

1110

1263

1360

1550

1610

1900

1938

2120





Resilient seated gate valve can be equipped with all kinds of electric actuator to clients' requirements to realize long-distance control and automatic control.It has the features such as quickness, liableness and easy installation etc..It is widely used in tap water industry, sewage treatmen, shipping, construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluid.
