GB3836.1-2000 Asynchronous Electric Motors 380V, YB2-90L-2 YB2-180M-2

China GB3836.1-2000 Asynchronous Electric Motors 380V, YB2-90L-2 YB2-180M-2 supplier

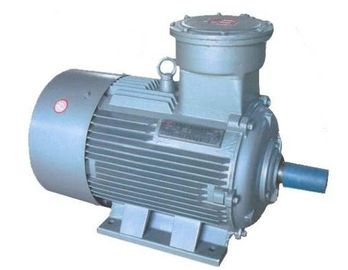

Large Image :  GB3836.1-2000 Asynchronous Electric Motors 380V, YB2-90L-2 YB2-180M-2

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: YB2 series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000sets/month
Contact Now
Detailed Product Description

GB3836.1-2000 Asynchronous Electric Motors 380V, Synchronous speed 3000r/min 2p



This series motors are designed and manufactured into flameproof type and the flameproof property conform to China National Standards: GB3836.1-2000 Electrical Apparatus for Explosive Gas Atmospheres, General Requirements GB3836.2-2000, Electrical Apparatus for Explosive Gas Atmospheres, Flameproof Enclosure Standards IEC79-1, BS4683 and EN50018.The explosion protection marks are ExdI, ExdIIAT4, ExdIIBT4, they are safe to use in the locations where there are explosive mixtures of gas and vapor air.



Operating conditions

Ambient temperature:         -15≤0≤40

Altitude:                       Not exceeding 1000meters

Frame:                        80~355

Output(KW):                   0.55~315

Rated voltage(V):              220/380,  380/660,  etc.

Rated frequency(HZ):          50/60

Connection:                    Y star-connection for 3kw and below

                                Delta-connection for 4kw and above

Duty/Rating:                   Continuous (S1)

Insulation class:                Class F

Protection class:                IP55

Mounting type:                 B3,  B5,  B35,  V1,  etc



Specifications:

Technical Data of YB2 series

Type

Rated Output

Volt

Current

Fred

Speed

(kW)

(HP)

(V)

(A)

(Hz)

(r/min)

Synchronous speed 3000r/min 2p

YB2-801-2

0.75

1

380

1.8

50

2840

YB2-802-2

1.1

1.5

380

2.6

50

2840

YB2-90S-2

1.5

2

380

3.4

50

2850

YB2-90L-2

2.2

3

380

4.8

50

2850

YB2-100L-2

3

4

380

6.2

50

2870

YB2-112M-2

4

5.5

380/660

8.1/4.7

50

2890

YB2-132S1-2

5.5

7.5

380/660

11.1/6.3

50

2900

YB2-132S2-1

7.5

10

380/660

14.8/8.6

50

2900

YB2-160M1-2

11

15

380/660

21.6/12.5

50

2940

YB2-160M2-1

15

20

380/660

28.8/16.6

50

2940

YB2-160L-2

18.5

25

380/660

35.5/20.5

50

2940

YB2-180M-2

22

30

380/660

41/23.7

50

2950

YB2-200L1-2

30

40

380/660

55.5/32.1

50

2950

YB2-200L2-2

37

50

380/660

67.9/39.2

50

2950

YB2-225M-2

45

60

380/660

82.1/47.4

50

2960

YB2-250M-2

55

75

380/660

99.7/57.5

50

2970

YB2-280S-2

75

100

380/660

134.4/77.5

50

2970

YB2-280M-2

90

125

380/660

160.2/92.5

50

2970

YB2-315S-2

110

154

380/660

195.4/112.5

50

2980

YB2-315M-2

132

184

380/660

233.2/134.3

50

2980

YB2-315L1-2

160

222

380/660

279.3/160.8

50

2980

YB2-315L2-2

200

279

380/660

348.4/200.6

50

2980

Synchronous speed 1500r/min 4P

YB2-801-4

0.55

0.75

380

1.5

50

1390

YB2-802-4

0.75

1

380

2

50

1390

YB2-90S-4

1.1

1.5

380

2.9

50

1390

YB2-90L-4

1.5

2

380

3.7

50

1390

YB2-100L1-4

2.2

3

380

5.1

50

1420

YB2-100L2-4

3

4

380

6.8

50

1420

YB2-112M-4

4

5.5

380/660

8.8/5.1

50

1430

YB2-132S-4

5.5

7.5

380/660

11.5/6.7

50

1440

YB2-132M-4

7.5

10

380/660

15.4/8.9

50

1440

YB2-160M-4

11

            15

380/660

22.3/12.9

50

1460

YB2-160L-4

15

20

380/660

30.1/17.4

        50

1460

YB2-180M-4

18.5

25

380/660

36.5/21.1

50

1470

YB2-180L-4

22

30

380/660

43.1/24.9

50

1470

YB2-200L-4

30

40

380/660

57.6/33.3

50

1470

YB2-225S-4

37

50

380/660

69.9/40.3

50

1480

YB2-225M-4

45

60

380/660

84.7/48.9

50

1480

YB2-250M-4

55

75

380/660

102.7/59.3

50

1480

YB2-280S-4

75

100

380/660

139.6/80.6

50

1480

YB2-280M-4

90

125

380/660

166.9/96.3

50

1480

YB2-315S-4

110

154

380/660

198.7/114.4

50

1485

YB2-315M-4

132

184

380/660

237.7/136.9

50

1485

YB2-315L1-4

160

222

380/660

284.3/163.7

50

1485

YB2-315L2-4

200

279

380/660

354.7/204.2

50

1485
