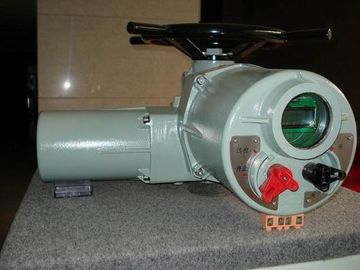

Explosion proof ExdIIBT4 IMT04 / M/H2BC, IMT04 / M/H3BC electric actuator ball valve 380v
IMT series is the new product in possession of intellectual propertly which TET develop independently with the famous university . TET introduced technology of limitorque and manufacture SMC series .
Specifications
1. Ambient temperature : -20 ~ 55 degree
2. relation humidity : < 90% (25degree)
3. Sea level height < 1000 meter
4. Working circumstance : without flamemable , explosive , corrosive medium
5. Protection Grade IP65-IP67
6. Power supply 380v , 50hz
7. Explosion proof Grade ExdIIBT4 , ExdII CT4 , ExdII CT6 .
IMT / M/ HBCIMT /HBC series technical data of electric part –turn value actuator :
|
Machine code |
Model |
Max. torque |
Output speed |
Motor power |
Motor current |
Travel time |
Note |
|
IMT04/M/H2BC |
MT04/M/H2-30-0.4 |
3000 |
0.4 |
0.3 |
10 |
38 |
|
|
MT04/M/H2-30-0.2 |
3000 |
0.2 |
0.2 |
8 |
75 |
|
|
|
IMT04/M/H3BC |
MT04/M/H3-75-0.13 |
7500 |
0.13 |
0.3 |
10 |
115 |
|
|
MT04/M/H3-65-0.1 |
6500 |
0.1 |
0.2 |
8 |
150 |
|
|
|
IMT-03/M/H3BC |
MT-03/M/H3-78-0.4 |
7800 |
0.4 |
0.6 |
23 |
38 |
|
|
MT-03/M/H3-78-0.2 |
7800 |
0.2 |
0.3 |
10 |
75 |
|
|
|
IMT-03/M/H4BC |
MT-03/M/H4-140-0.2 |
14000 |
0.2 |
0.6 |
23 |
75 |
|
|
MT-03/M/H4-175-0.14 |
17500 |
0.14 |
0.6 |
23 |
107 |
|
|
|
MT-03/M/H4-175-0.08 |
17500 |
0.08 |
0.4 |
13 |
188 |
|
|
|
IMT-03/M/H5BC |
MT-03/M/H5-240-0.15 |
24000 |
0.15 |
0.6 |
26 |
100 |
|
|
MT-03/M/H5-240-0.08 |
24000 |
0.08 |
0.4 |
13 |
188 |
|
|
|
IMT-00/M/H5BC |
IMT-00/M/H5-250-0.25 |
25000 |
0.25 |
1.1 |
25 |
60 |
|
|
IMT-00/M/H5-270-0.2 |
27000 |
0.2 |
1.1 |
25 |
75 |
|
|
|
IMT-0/M/H6C |
IMT-0/M/H6-630-0.12 |
63000 |
0.12 |
1.5 |
31 |
125 |
|
|
IMT-0/M/H6-630-0.1 |
63000 |
0.1 |
1.1 |
25 |
150 |
|
