WRR2-120 Type S Thermocouple , Type B Thermocouple , Type K Thermocouple

China WRR2-120 Type S Thermocouple , Type B Thermocouple , Type K Thermocouple supplier
WRR2-120 Type S Thermocouple , Type B Thermocouple , Type K Thermocouple supplier WRR2-120 Type S Thermocouple , Type B Thermocouple , Type K Thermocouple supplier

Large Image :  WRR2-120 Type S Thermocouple , Type B Thermocouple , Type K Thermocouple

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: WRR2-121

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Contact Now
Detailed Product Description



WRR2-120 Type S Thermocouple , Type B Thermocouple , Type K Thermocouple

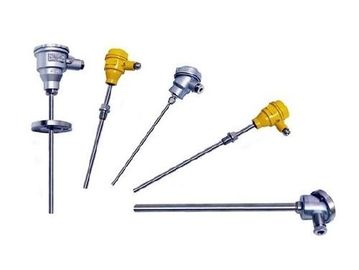

assembly-type thermocouple



As the sensor of the temperature measurement, assembly-type thermocouple is used with displays, recorders and electrical adjuster completely. It can measure the temperature of liquid, vapor, gas and the surface of solid from 0℃ to 1800℃ directly. According to national regulation, we have manufactured copper- copper nickel, iron-copper nickel etc. type of thermocouple since 1987. They are all in line of IEC international standard graduation.



category
mode
graduation
range
Allowable error(△t℃)
Platinum 30%rhodium-Platinum 6%rhodium WRR B 0-1800 ±1.5℃ or ±0.0025∣t∣
Platinum 10%rhodium-platinum WRP S 0-1600 ±1.5℃ or ±0.0025∣t∣
chromel-nisiloy WRN K 0-1300 ±2.5℃ or ±0.0075∣t∣
chromel-copper nickel WRE E 0-800 ±2.5℃ or ±0.0075∣t∣

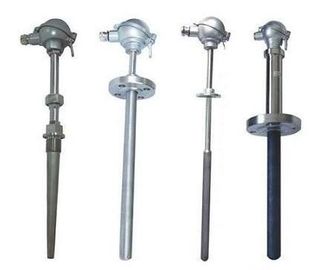

Unfixed (ceramic protection casing) thermocouple
Thermocouple type model graduation Temp range  oC
Specs
Response time T0.5S
Dia
mm
Protection casing matertial
Single PtRh30-PtRh6 WRR-120 B 0~1600 Φ16 corundum <150
WRR-121 Φ25 <360
Double PtRh30-PtRh6 WRR2-120 Φ16 <150
WRR2-121 Φ25 <360
Single PtRh10-Pt WRP-120 S 0~1300 Φ16 High alumium <150
WRP-121 Φ25 <360
Double PtRh10-Pt WRP2-120 Φ16 <150
WRP2-121 Φ25 <360
Single NiCr-NiSi WRN-122 K 0~1100 Φ16 High alumium <240
WRN-123 0~1200 Φ20
doubleNiCr-NiSi WRN2-123 0~1100
Single PtRh30-PtRh6 WRR-130 B 0~1600 Φ16 corundum <150
WRR-131 Φ25 <360
Double PtRh30-PtRh6 WRR2-130 Φ16 <150
WRR2-131 Φ25 <360
Single PtRh10-Pt WRP-130 S 0~1300 Φ16 High alumium <150
WRP-131 Φ25 <360
Double PtRh10-Pt WRP2-130 Φ16 <150
WRP2-131 Φ25 <360
Single NiCr-NiSi WRN-133 K 0~1200 Φ30 High alumium <240
double NiCr-NiSi WRN2-133 0~1100



Note:  1) Non-placement part of structural characteristics is carbon steel -20.
2) Diameter φ25mm to double porcelain bushing.

Protection tube’s diameter and length specifications table.

    016(single layer)

    020

    025(double -layer)

 total length L

 Placed-depth l

 total length L

 placed-depth l

total length L

placed-depth l

    300

    150

    400

    250

    550

    400

    350

    200

    450

    300

    650

    500

    400

    250

    550

    400

    900

    750

    450

    300

    650

    500

    1150

    1000

    550

    400

    900

    750

    1650

    1500

    650

    500

    1150

    1000

    2150

    2000

    900

    750

    1650

    1500


    1150

    1000

    2150

    2000
