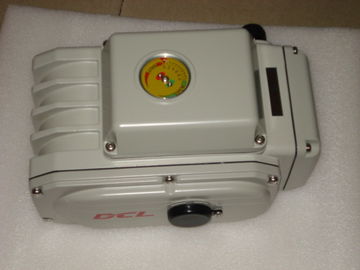

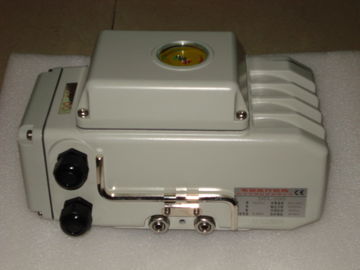

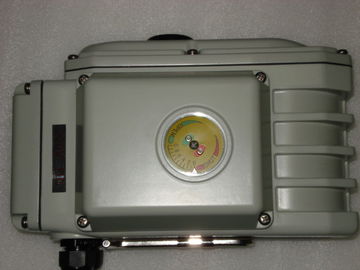

40W Electric Valve Actuator Portable AC110V 0.65A DCL-20

Good quality Power Station Valve for sales
Good quality Power Station Valve for sales
Nice cooperation with Hontai . Fast operation as we like .

—— Froza Sia

Reliable supplier and good service , it is good action for us to supply photo before shipping.

—— Wister CS

Both of us treat each other as brothers and systers.But we still work with principles.Products quality control well before sending to us.

—— R. Susai

I'm Online Chat Now

40W Electric Valve Actuator Portable AC110V 0.65A DCL-20

China 40W Electric Valve Actuator Portable AC110V 0.65A DCL-20 supplier
40W Electric Valve Actuator Portable AC110V 0.65A DCL-20 supplier 40W Electric Valve Actuator Portable AC110V 0.65A DCL-20 supplier 40W Electric Valve Actuator Portable AC110V 0.65A DCL-20 supplier

Large Image :  40W Electric Valve Actuator Portable AC110V 0.65A DCL-20

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: DCL-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 25 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Contact Now
Detailed Product Description

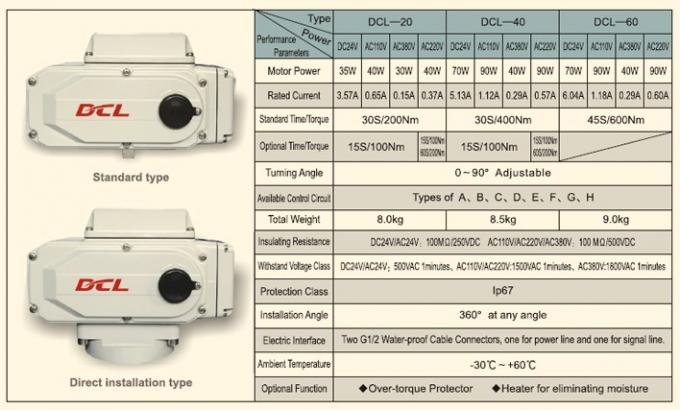

Type: DCL-20,DCL-40,DCL-60 MOtor POWER: 30W-90W
Rated Current: 0.15A-5.13A Voltage: AC220V, DC220V, DC24, AC110V And Other Power Supply.





40W Electric Valve Actuator Portable AC110V 0.65A DCL-20





Electric actuator -DC-20GL  DCL-20



DCL fine small introduction series actuators for part of the rotary valve (such as butterfly valve, ball valve and damper baffle), imported electronic components, high quality aluminum alloy die casting shell, fine and smooth, small volume and light weight, maintenance free, strong corrosion resistance and other excellent performance, can be used in the narrow places. All products are widely used in building automation, water, paper, electric power, chemical and other automation control system.




Its advantages are as follows:


1, the housing refined small smooth, small volume, light weight, simple wiring, beautiful, convenient move and maintenance.

2, superior performance and stability is complete, have the general type, with a potentiometer type, passive, intelligent, fast slow turn, indicator, have everything that one expects to find.

3, the power loss rate is low, can save a lot of cost.

4, advanced technology, electronic parts adopt imported original stable performance, mechanical parts processing fine precision wear-resistant, with multiple protection devices to avoid improper operation or overload damage, hand electric device can be manually controlled, compact structure optimization design eliminates the disadvantages of work noise.

5, the installation is convenient in valves, but not mechanical processing can be directly installed in the manual valve.

6, the voltage is AC220V, DC220V, DC24, AC110V and other power supply.

 40W Electric Valve Actuator Portable AC110V 0.65A DCL-20

40W Electric Valve Actuator Portable AC110V 0.65A DCL-20
