Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block

Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block

  • Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block
  • Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block
  • Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block
  • Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block
  • Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block
Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: AT series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Contact Now
Detailed Product Description
Brand Name: OEM Cylinder Block: High-quality Aluminum Alloy Cylinder Block
Pneumatic Actuators: AT/GT Series Pneumatic Actuators Acting Type: Single Acting And Double Acting
High Light:

electro hydraulic actuator

,

electro hydraulic machinery



Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block



1.single acting and double acting.
2.long service life.
3.high quality and reasonable price.



AT/GT series pneumatic actuators.DA and SR pneumatic actuators are design to work with Butterfly Valves and Ball Valves.

1. dual piston rack and pinion design of symmetric structures,rapid and smooth movement,high precision,high output power,by simply changing the position of the piston assembly against the direction of rotation available.
2. Extrusion of high-quality aluminum alloy cylinder block,by the precision machining of the inner hole and outer surface of hard anodized(anodic oxidation under special circumstances+ coating),longer life,low friction coefficient.
3. Integrated design,all the dual role and one role of the actuator models have the same cylinder and end caps,easily removed by installing a spring or spring to change the mode of action.
4. Combined pre-safe spring group,both in the assembiy process or use on-site in both convenient and safe to install or    change the number of spring.

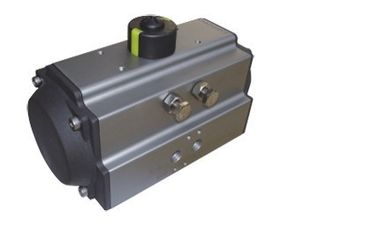

Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block 0

Double action :

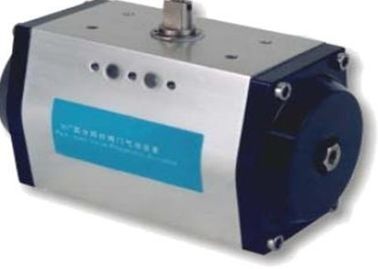

Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block 1


Model

air pressure (MPa)

0.2

0.3

0.4

0.5

0.6

0.7

0.8

ATD50

7.9

11.8

15.7

19.6

23.6

27.5

31.4

ATD65

14.7

22.1

29.5

36.8

44.2

51.5

58.9

ATD80

26.0

39.0

52.0

65.1

78.1

91.1

104

ATD100

58.0

87.0

116

145

174

203

232

ATD130

108

163

217

272

326

381

435

ATD160

223

334

446

557

669

780

892

ATD210

538

807

1075

1344

1613

1882

2151

ATD255

1057

1586

2115

2644

3172

3701

4230

ATD300

1656

2470

3293

4117

4940

5764

6587

ATD350

2490

3735

4981

6226

7471

8717

9962



Single action :

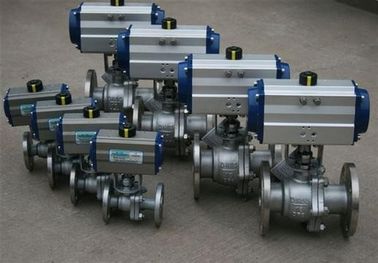

Ball Valves Electric Valve Actuator AT / GT Series And Aluminum Alloy Cylinder Block 2



Model

Spring qty

Air pressure(MPa)

Spring reset

0.3

0.4

0.5

start

end

start

end

start

end

start

end

AT65S

8

15.0

7.9

22.3

15.2

27.9

19.1

14.2

7.1

10



20.6

11.7

26.2

15.5

17.8

8.9

12



18.8

8.1



21.3

10.7

AT80S

8

25.1

16.2

38.1

29.3

47.6

36.6

22.8

14.0

10



34.6

23.6

44.1

30.9

28.5

17.5

12



31.1

17.9



34.2

21.0

AT100S

8

56.1

26.5

85.1

55.5

106

69.4

60.7

31.1

10



77.3

40.3

96.8

54.2

75.9

38.9

12



69.6

25.2



91.0

46.6

AT125S

8

101

65.7

155

120

194

150

97.7

62.2

10



140

95.7

179

125

122

77.7

12



124

71.3



146

93.2

AT160S

8

201

134

312

246

391

307

199

133

10



279

196

357

258

249

166

12



246

146



299

199

AT210S

8

465

309

734

578

917

723

497

341

10



648

454

832

599

621

427

12



563

330



745

512

AT255S

8

945

670

1474

1199

1843

1499

915

640

10



1314

970

1683

1270

1144

800

12



1154

741



1373

961

AT300S

8

1491

838

2314

1662

2893

2077

1631

979

10



2069

1254

2648

1669

2039

1223

12



1825

846



2447

1468

AT350S

8

2181

1404

3427

2650

4284

3312

2330

1554

10



3038

2067

3895

2730

2913

1942

12



2650

1484



3496

2331
