Dia 16mm Power Station Valve IMI NORGREN LINTRA No Rod Cylinder Cast Aluminium

IMI NORGREN LINTRA no rod cylinder M/146000 ,M/146100,M/146200 norgren M/146016/M/900 dia16mm trip900mm

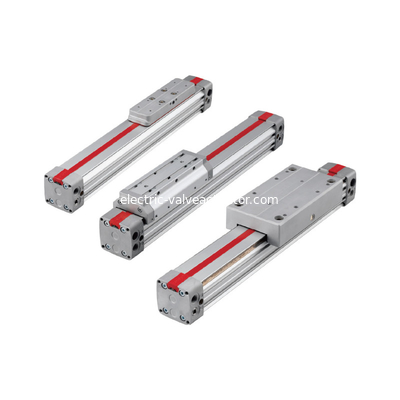

LINTRA ® Plus rodless cylinder

characteristic

· New light extrusion design with integrated magnetic switch mounting slot

· Proven and patented sealing system

· Standard dust protection

· Interchangeable with M / 46000 series

LINTRAR

Rodless cylinder

M/146000,M/146100,M/146200

Inner guide, outer guide and precision roller guide

Double action

Ø32 … 50mm

Adopt reliable and long-life sealing design

Lightweight extruded cylinder with integrated

Type magnetic switch mounting slot

It can withstand instantaneous large bending moment and lateral force

It can work without oil lubrication

There are many kinds of deformation

technical parameters

Media:

Filtered lubricated or unlubricated compressed air

Operation mode:

M/146000/M,M/146100/

M,M/146200/M

Double acting, magnetic piston, adjustable buffer

M/146000,M/146100,M/146200

Double acting, adjustable buffer

working pressure:

1 ~ 8bar

Operating ambient temperature:

-30°C ~ +80°C max.

When using under + 2 ° C, please consult the technical service department of the company

Cylinder bore:

16,20,25,32, 40, 50,63,80mm

Max. stroke:

Ø16-40mm 8500mm

Ø50,63mm 8000mm

Ø 80mm 5500mm

material:

End cover, slide, upper end cover: Die Cast Aluminum

Piston, guide bridge, profile cylinder:

Anodic alumina

Sealing belt, dust collector, piston seal: Polyurethane

Dust cover tape: polyamide
