Place of Origin: | China |
Brand Name: | OEM |
Model Number: | NXQ1-L0.4 |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Wooden box packing |
Delivery Time: | 15 days after signing the contract |
Payment Terms: | T/T |
Supply Ability: | 1000sets |
Specifications: | SW2401DP | Computer Connections: | 4 |
---|---|---|---|
Host Connectors: | 4x DisplayPort Female;4x USB Type B Female | Maximum Digital Resolutions: | 3840x2160@60Hz |
Operating TemperatureRange: | -40 ~ +55°C | Power Supply: | DC12V/1A |
Dimensions(W X H X D): | 245mm X 95mm X 41mm | ||
High Light: | 3840x2160 Desktop KVM Switch,DC12V Desktop KVM Switch,SW2401DP Display Port KVM Switch |

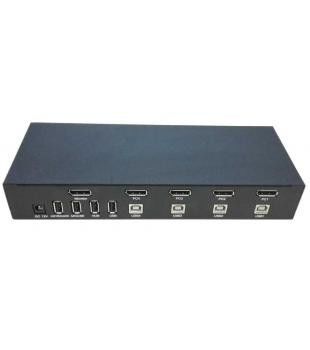

Description: The DYLINK SW2401DP 4 Port USB 2.0 DisplayPort KVM Switch allows quick switch between 4 computers from a single USB keyboard and mouse. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers. All keyboard and mouse data transfers via KVM cables for seamless response. DisplayPort 1.2,resolutions up to 3840x2160 @60Hz.The SW2201DP setup is easy,simply plug the cables into their appropriate ports . There is no software to configure, no installations, and no incompatibility issues. In addition, the SW2401DP allowing it to work on multiple OS platforms including:Windows, Linux, and Mac.
Features
■ Share keyboard, mouse, and DisplayPort display between four DisplayPort-equipped computers
■ Full plug-and-play support with USB keyboards, mouse, and connected peripherals.
■ Integrated 2 port USB 2.0 hub, fully compliant with USB 2.0 specifications
■ DisplayPort 1.2a,supports a maximum resolution of 3840x2160@60Hz
■ Hotkey and push-button switching
■ OS independent - No driver or software required
■ Supports DDC2B for monitor detection
■ Multiplatform support :Windows, Linux and Mac
■ HP,DELL,IBM mouse and keyboard compatable
Package Includes
• 1 x DisplayPort KVM Switcher
• 1 x Power Adapter
• 1 x User’s Manual
Specifications
Specifications | SW2401DP |
Computer Connections | 4 |
Host Connectors | 4x DisplayPort Female;4x USB Type B female; |
Console Interfaces |
1x DisplayPort Female; For mouse/keyboard:2x USB Type A female; For USB Hub: 2x USB Type A female; |
DisplayPort Specification | V1.2 |
Maximum Digital Resolutions | 3840 x 2160@60Hz |
USB Specification | V2.0 |
LED Indicators | 4 |
Port Selection | Push Button and Hotkeys |
Power Supply | DC12V/1A |
Operating TemperatureRange | -40 ~ +55°C |
Dimensions(W x H x D) | 245mm X 95mm X 41mm |
This product is also named as DisplayPort Switch,DP Switch,or DisplayPort KVM Switch,DP KVM Switch,or DisplayPort USB KVM Switch,DP USB KVM Switch,and so on.
