| Place of Origin: | China |
| Brand Name: | OEM |
| Model Number: | JM-C-3KA |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box packing |
| Delivery Time: | 15 days after signing the contract |
| Payment Terms: | T/T |
| Supply Ability: | 1000sets |
| Outline Dimension: | 100×23×92mm | Current Output: | 4～20mA |
|---|---|---|---|
| Switching Value: | DC27V/2A Or AC250V/5A | Power Supply Voltage: | DC+24V |
| Working Temperature: | -10～65℃ | Relative Humidity: | ≤85% |
| High Light: | DIN 35 Rotational Speed Sensor,1000rpm Rotational Speed Sensor,20mA Key Phase Speed Transmitter |
||

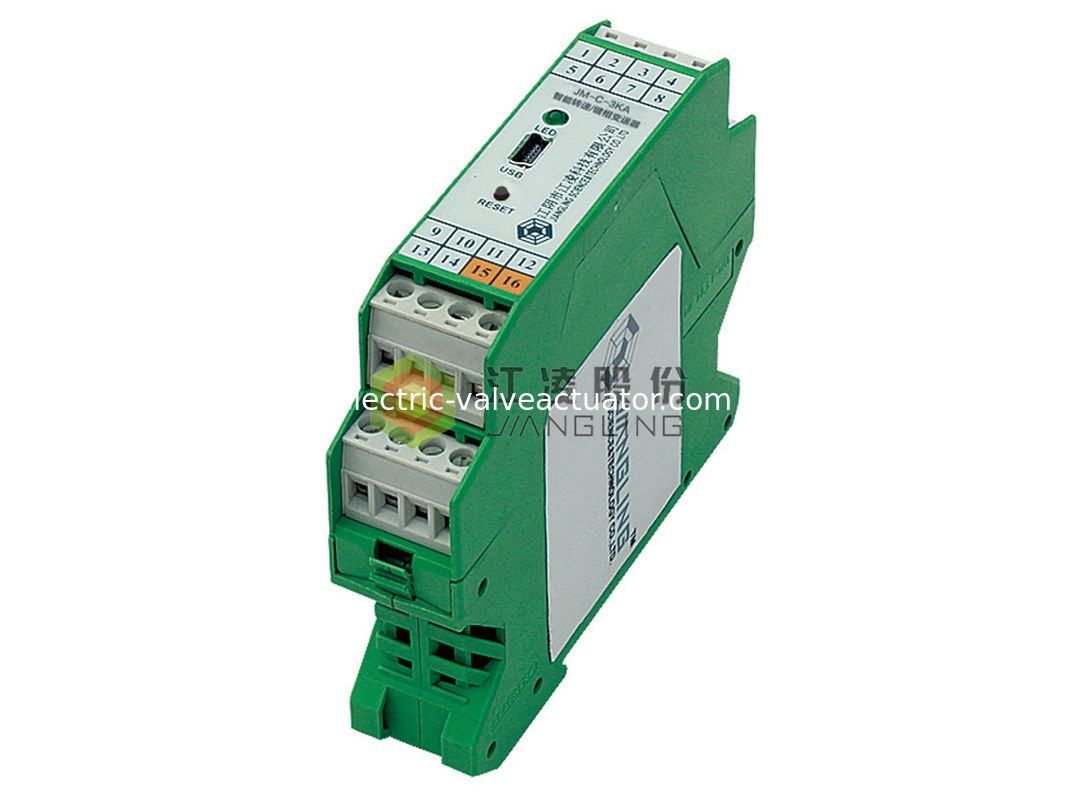

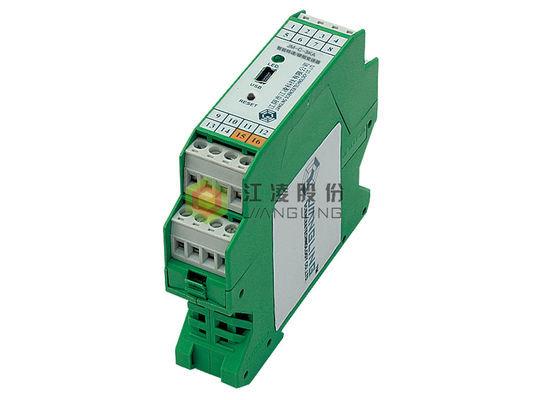

JM-C-3KA Intelligent speed transmitter / key phase
System description
• speed / key monitoring
• Intelligent design
• PC software configuration function
• DIN 35 type guide rail installation
• single - pole double throw switch design
Technical parameters
| Order No. | Description |
| Measure range | To the order guide |
| Outline dimension | 100×23×92(W×H×D) UNIT: mm |
| Current output | 4～20mA(load≤1KΩ) |
| Switching value | Two level switching value output (DC27V/2A or AC250V/5A) |
| Power supply voltage | DC+24V |
| Environment temperature |
Working temperature : -10～65℃, Relative humidity : ≤85% |
Order Guide:
| Order No. | The selection of sensor A | The selection of range B | Expand C |
|
JM-C-3KA- intelligent speed transmitter / KEY PHASE
|
1:CS-1 speed sensor 2:CS-3 speed sensor
|
1: 1000rpm 2: 2000rpm 3: 3000rpm 4: 4000rpm* 5: 5000rpm n: special requirements |
0:NO |
Note: The specific requirements should be provided for special model selection
