Place of Origin: | China |
Brand Name: | shanghai |
Model Number: | DN15/20//25/32/40/50 1inch 1.2inch 1.5inch 2inch |
Minimum Order Quantity: | 1 |
---|---|
Price: | contact |
Delivery Time: | 15 days |
Payment Terms: | TT |
Supply Ability: | 100unit / month |
Material: | SS (304) 316 | Pressure: | High Pressure,Medium Pressure,Low Pressure |
---|---|---|---|
Power: | Manual,Hydraulic | Temperature Of Media: | Normal Temperature |
Media: | Water,oil, Steam | Function: | Control Ball Valve |
High Light: | gate check valve,power plant valves |

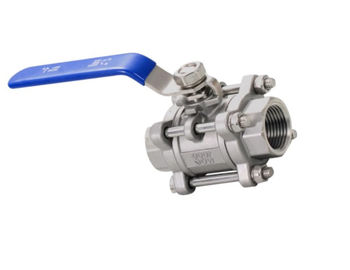

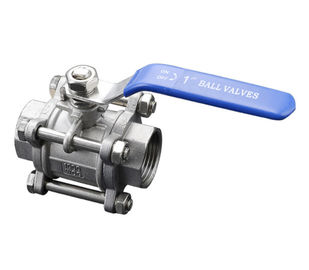

Stainless steel three-way ball valve DN15 DN20 DN25 T/L three-way ball valve 1 inch
The three-piece ball valve can be closed tightly only with a 90 degree rotation operation and a small turning moment. Fully equal body cavity provides medium with little resistance, straight-through runner. It is generally considered that ball valve is the most suitable for opening and closing directly, and the ball valve has been designed to have throttle and flow control. the ball valve is mainly characterized by its compact structure, easy to operate and maintain, suitable for general working media such as water, solvent, acid and natural gas, but also suitable for medium with poor working conditions, such as oxygen, hydrogen peroxide, methane and ethylene. Ball valve body can be integral or combined.
Product name | 3PC Socket Weld Ball Valve |
1)Material | SS201 SS304, 304L, 316, 316L |
2)Size | 1/4''-4''&DN6-DN100 |
3)Certificate | ISO9001: 2000,CE |
4)Working pressure | 1000psi(6.4MPa) |
5)Connection Ends | Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW). |
6)Suitable medium | Water, gas, air and some corrosive liquid |
7)Temperature Range | -20-300 degree C |
8)Investment | casting body and cap |
9)Sealing | PTFE, RPTFE, PPL |
10)stem | SS201,SS304,SS316 Adjustable stem packing, |
11)Locking | option |
