Heavy Duty Two Piece Power Station Valve Screw Port Internal Thread Water Type 304/316

Product Details:

Place of Origin:	China
Brand Name:	shanghai
Model Number:	DN6/10/15/20/25/32/40/50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	contact
Delivery Time:	15 days
Payment Terms:	TT
Supply Ability:	100unit / month

Contact Now

Detailed Product Description

Material:	SS (304) 316	Pressure:	High Pressure,Medium Pressure,Low Pressure
Power:	Manual,Hydraulic	Temperature Of Media:	Normal Temperature
Media:	Water,oil, Steam	Function:	Control Ball Valve
High Light:	gate check valve , power plant valves

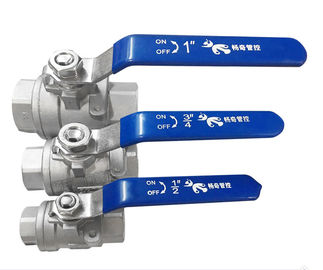

304/316 Heavy duty two-piece stainless steel ball valve screw port internal thread water valve

This heavy duty stainless steel ball valve is pressure rated up to 2000 psi. The standard port design works great for most situations.
S.S. 316 investment cast standard port body
Working Pressure 2000 psi (WOG)
Suitable for full range of liquids and gas
Pure seals and seats
Temperature range: -60 to 450 degree Fahrenheit
Low operation torque
100% individually tested
Blowout-proof stem
FxF NPT threaded ends to ANSI B1.20.1
Heavy duty locking handles with Blue vinyl insulator

• SS 316 investment cast standard port body
• Working pressure of 2,000 PSI (WOG)
• Suitable for full range of liquids and gas
• Pure seals and seats
• Low operation torque
• 100% individually tested
• Blowout-proof stem
• Female x Female NPT threaded ends to ANSI B1.20.1
• Heavy duty locking handles with blue vinyl insulator
• Temperature range: -60 to 450 Degrees F

Materials List
Body - SS 316 (CF8M)
Ball - SS 316 (CF8M)
Cap - SS 316 (CF8M)
Seat - RPTFE
Thrust Washer - SS 304
Stem Packing - PTFE
Stem Seal - PTFE
Body Seal - PTFE
Gland Nut - SS 304
Stem Nut - SS 304
Handle - SS 304
Handle Cover - Plastic
