High Frequency Electric Valve Actuator ROTORK Motorized Valve With Straight Travel IQM10 380V

China High Frequency Electric Valve Actuator ROTORK Motorized Valve With Straight Travel IQM10 380V supplier
High Frequency Electric Valve Actuator ROTORK Motorized Valve With Straight Travel IQM10 380V supplier High Frequency Electric Valve Actuator ROTORK Motorized Valve With Straight Travel IQM10 380V supplier

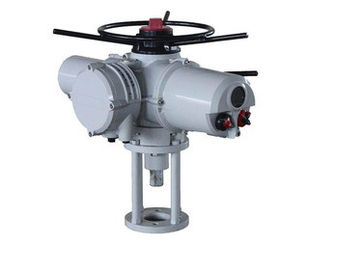

Large Image :  High Frequency Electric Valve Actuator ROTORK Motorized Valve With Straight Travel IQM10 380V

Product Details:

Place of Origin: China
Brand Name: ROTORK
Model Number: IQM series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 35days after signing the contract
Payment Terms: T/T
Supply Ability: 300sets
Contact Now
Detailed Product Description

Pneumatic valve actuators and hydraulic valve actuators , Rotork actuator IQ3 electrical actuators





Summary



The modulating version of the IQ 3-phase electric actuator has a solid state reversing starter in place of the electro mechanical contactors. It features fast-response remote control circuits for rapid control. To optimise positional control, the solid state starter also adds an electronic motor ‘brake' feature.



The IQM is suitable for up to 1,200 starts per hour (S4 / Class C). Direct seating torque output range from 10 to 544 Nm (7 to 400 lbf.ft). With second stage gearboxes, output seating torque up to 3,600 Nm (2,655 lbf.ft) and part-turn up to 77,000 Nm (56,790 lbf.ft).





Multi-turn electric actuator ON-OFF:

IQ10,IQ12,IQ18,IQ20,IQ25,IQ35,IQ40,IQ70,IQ90,IQ91,IQ95

IQC10,IQC12,IQC18,IQC20,IQC25,IQC35,IQC40,IQC70,IQC90,IQC91,IQC95

IA10,IA12,IA18,IA20,IA25,IA35,IA40,IA70,IA90,IA91,IA95

Multi-turn electric actuator modulating

Both input and output signal:4-20ma

IQM10,IQM12,IQM18,IQM20,IQM25,IQM35,IQM40,IQM70,IQM90,IQM91,IQM95

IM10,IM12,IM18,IM20,IM25,IM35,IM40,IM70,IM90,IM91,IM95



Features

Parameters of ROTORK IQ , IQC , IQM , IM series :

Model No.:

IQ IQC IQM IM

Rated Torque:

100Nm-3000Nm

Revolving speed:

18r/min 24r/min 36r/min 72r/min

Power supply:

three phase 380V(±10%) signal phase 220V

Rated power:

0.05Kw 0.07Kw 0.12kw 0.17kw

Frequency:

50Hz 60hz

Rated currency:

0.45A 0.6A 1.3A 0.85A2.1A 3.6A16.5A 35A 88A

Start currency:

0.45A

Installation:

directly mounted

Control method:

on-off type or modulation type(both input and output signal 4-20ma)

Protection class:

IP 55-IP68

Weight:

25kg-165kg

Effective angle

0-360°(adjustable range 0°-105°)

Control basic:

basic error ±10%;return difference ≤1%;dead area ≤1%

Environmental humidity:

no corrosive gas

Flange code ISO5210

Direct mounted:

Flange code ISO5210:F16

Shaft hole diamter(mm):max∅70
