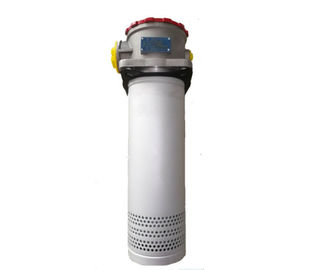

Filter Leemin Type Oil Filter, RFA-250x20F-C oil return filter for the fine filtration of the hydraulic system
Features of filter :
1. The oil return filter is used for the fine filtration of the hydraulic system, the metal particles produced by the wear of the components in the hydraulic system and the rubber impurities of the seals, so that the oil flowing back to the fuel tank can be kept clean.
2. The filter is installed at the top of the tank, the cylinder part is immersed in the tank, the filter core pollutes the blockage transmitter and so on. The utility model has the advantages of compact structure, convenient installation, large oil passing capacity, small pressure loss, convenient replacement of filter core and so on.
3.The nominal flow of the filter is provided with a filter core pollution transmitter and an oil bypass valve to improve the reliability of the hydraulic system
4. The RFA-250x20F-C filter is provided with a liquid flow diffuser, the diffuser is arranged at the bottom of the oil return cylinder body, the oil return medium can smoothly flow into the oil tank, and bubbles are not easily generated, so that air re-entering is reduced, and the deposited pollutant is reduced.
Technical details :
filtering accuracy: 1-30 μ m
diameter: 50mm weight: 4.35kg
1. pipe type (inlet thread connection)
2. Flanged Connection
