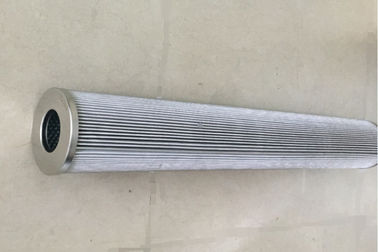

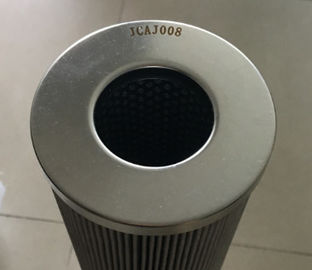

oil filter element JCA J008 EH oil system high accuracy filter element , imported fiberglass/stainless steel mesh
Features of filter element:
1. The filter element is made of U.S. imported fiberglass/stainless steel mesh, which is easy to discharge pollution, large flow area, small pressure loss, simple structure, small volume, light weight and uniform filter material.
2. The compatibility of filter material is applicable to the filtration of general hydraulic oil.
3. The filter element is supported by solid filter material on both sides and filter material with strong stability, which complies with the verification of flow fatigue characteristics of ISO3724/76 hydraulic filter element.
Sealing material: fluorine apron
filter material: high quality glass fiber filter material-BN
filtration accuracy: from 1,3,6,12,25……μm
filtration ratio: β ≥ 1000
structural strength: 2.0 MPA, 16.0 MPA, 21.0Mpa
application range: used for hydraulic and lubricating system pressure oil filtration, used to filter pollutants from the system to ensure the normal operation of the system.
