CR-P024AC1 CR-P range Pluggable interface Electronic Relay and optocouplers

China CR-P024AC1 CR-P range Pluggable interface Electronic Relay and optocouplers supplier
CR-P024AC1 CR-P range Pluggable interface Electronic Relay and optocouplers supplier CR-P024AC1 CR-P range Pluggable interface Electronic Relay and optocouplers supplier

Large Image :  CR-P024AC1 CR-P range Pluggable interface Electronic Relay and optocouplers

Product Details:

Place of Origin: China
Brand Name: ABB
Model Number: CR-S048/060VADC1SZ

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Contact Now
Detailed Product Description

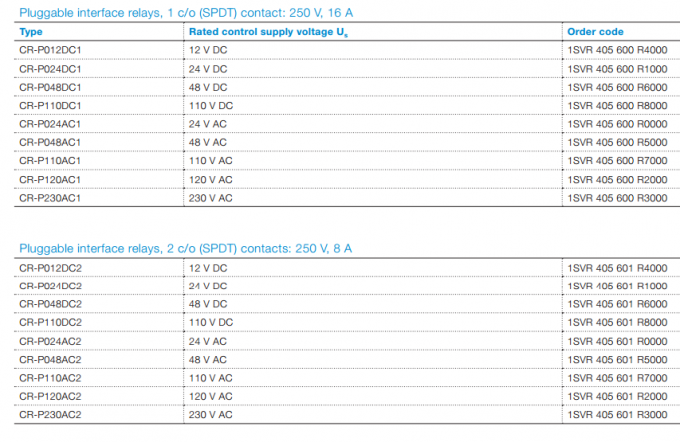

Product Type:: CR-P024AC1 Output Signal: 1 C/o (SPDT) Contact 250 V / 16 A
Product Net Weight: 0.014 Kg Function: Pluggable Pcb Interface Relay CR-P
Sub-Function: Relay W/o Built In LED Rated Control Supply Voltage (Us): 24 V AC

CR-P range

The pluggable pcb interface relays



The pluggable interface relays of the CR-P range are used for electrical isolation, amplification and signal matching between the electronic controlling, e.g. PLC, iPC or field bus systems and the sensor / actuator level. The CR-P range offers highest current switching in an IP67 rated relay housing. Furthermore, 9 different coil voltages are available to suit world wide applications and even gold contact version are available which is essential when it comes to switch sensitive signals.



Main benefits

  • Switching high contacts on a small foot print
  • Suitable for harsh environments with IP67 rating
  • Customizable with pluggable function modules

Main features

  • 9 different coil voltages 12-110 V DC / 24-230 V AC
  • 1 c/o contact (16 A) or 2 c/o contact version (8 A)
  • Optional gold plated contacts available
  • Logic and standard sockets
  • Cadmium free contact material
  • Pluggable function modules such as RC elements and varistors available



Pluggable interface relays and optocouplers are used for electrical isolation, amplification and signal matching between the electronic controlling, e.g. PLC (programmable logic controller), PC or field bus systems and the sensor / actuator level. They don’t use additional internal protective circuits and thus are overload-proof against short-time variations like current or voltage peaks.



CR-P024AC1 CR-P range Pluggable interface Electronic Relay and optocouplers
