RVHX\RVCX non rising stem resilient seated gate chemicals, power station valve

RVHX\RVCX non rising stem resilient seated gate chemicals, power station valve

  • RVHX\RVCX non rising stem resilient seated gate chemicals, power station valve
  • RVHX\RVCX non rising stem resilient seated gate chemicals, power station valve
RVHX\RVCX non rising stem resilient seated gate chemicals, power station valve
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: RVHXRVCX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box
Delivery Time: Within 15days
Payment Terms: T/T
Supply Ability: 1000pcs / month
Contact Now
Detailed Product Description
High Light:

gate check valve

,

gate globe valve

RVHXRVCX non rising stem resilient seated tap water in dustry, sewage treatment, shipping, construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy power station valve



The valve disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation.Non-rising resilient seated gate valve solves the problem in general gate valve such as leakage, rusting etc. and saves installation space.It is widely used in tap water in dustry, sewage treatment, shipping, construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluid.

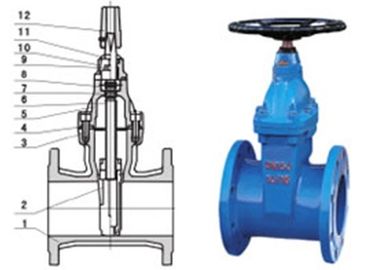

Main material



Serial no.

part

material

1

Body

Grey cast iron, ductile cast iron, cast steel

2

Disc

Ductile cast iron packed with rubber or EDPM outside

3

Bolt

Carbonized treatment

4

Gasket

Buna-N rubber or EDPM

5

Cover

Grey cast iron, ductile cast iron, cast steel

6

Stem

tainless steel

7

O-ring

Buna-N rubber or EPDM

8

Thrust bearing

Gunmetals

9

Bolt

Stainless steel

10

Gland

ductile cast iron, cast steel

11

Dust proof gasket

Buna-N rubber

12

Handwheel(transmission cap)

Cast iron



Main technic-al parameters


Nominal pressure: 1.0-2.5MPaWorking temp.:0-120Flanged end:GB/T17241.6 GB9113
Nominal diameter: 50-400mmService:water, oils, gas etc..Inspection and test:GB 13927 API 598

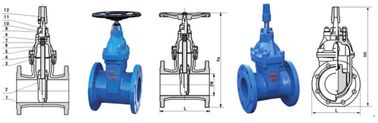

Main dimensionsunit:mm



DN

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L

178

190

203

229

254

267

292

330

356

381

406

432

457

508

Hmin(full close)

313

332

372

424

497

562

680

837

948

1010

1220

1280

1480

1665

Hmax(full open)

355

375

415

476

540

600

720

875

990

1050

1245

1310

1560

1750
