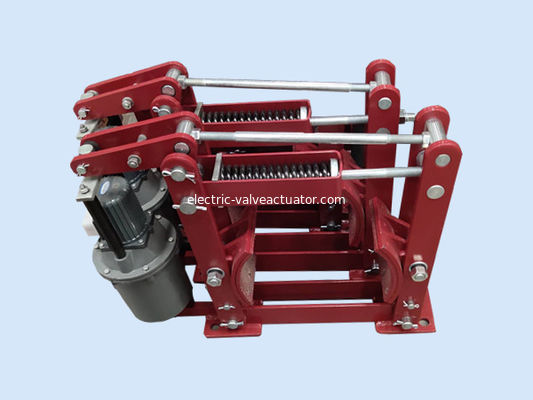

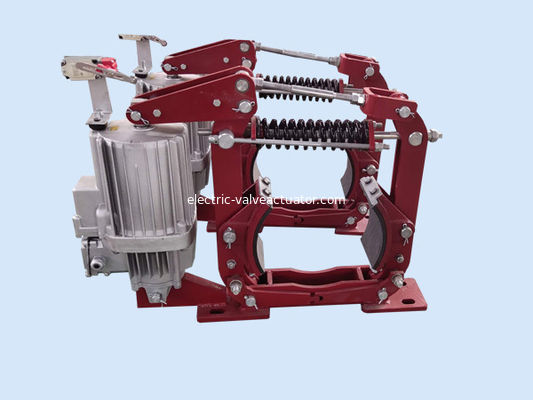

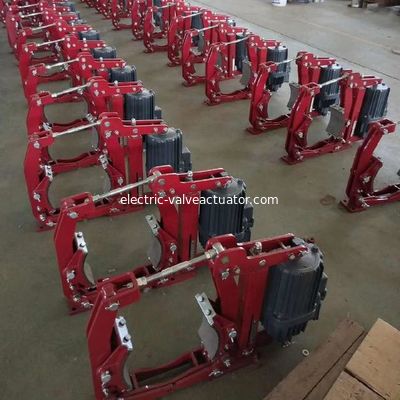

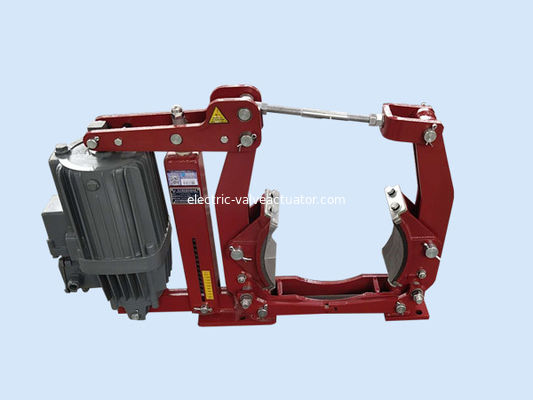

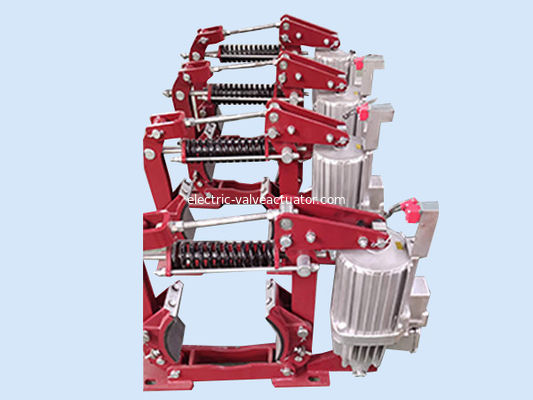

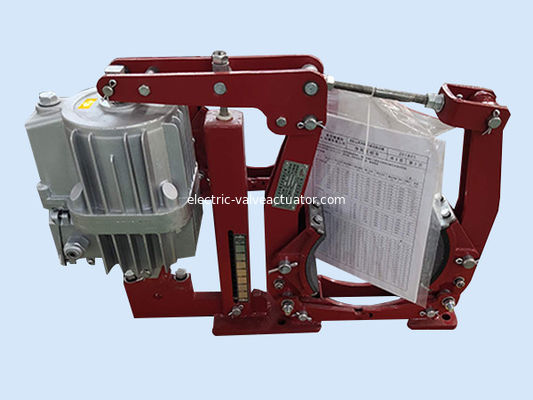

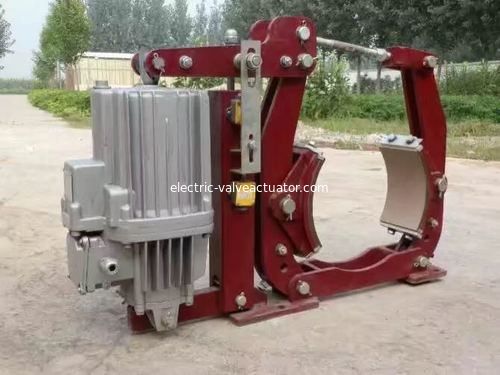

Electro-Hydraulic Brake YWZ9-200/E30 YWZ9-300/E30 Ed30/5 YWZ9-315/E80 Ed80/6

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Electro-Hydraulic Brake YWZ9-200/E30 YWZ9-300/E30 Ed30/5 YWZ9-315/E80 Ed80/6 Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: YWZ9-315/E80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Detailed Product Description
Brake: YYWZ9-300/E80 Thruster: ED-80/6
Weight: 80 Kg Brake Torque: 630-1000 Nm
High Light:

electromagnetic brakes

,

electro hydraulic machinery

Electro-Hydraulic Brake YWZ9-200/E30 YWZ9-300/E30 Ed30/5 YWZ9-315/E80 Ed80/6

Brake Thruster Brake wheel diameter brake torque (nm) reback distance (mm)
YWZ9-160/E23 Ed23/5 160 80-160 1
YWZ9-200/E23 Ed23/5 200 112-200 1
YWZ9-200/E30 Ed30/5 140-315
YWZ9-250/E23 Ed23/5 250 140-250 1
YWZ9-250/E30 Ed30/5 180-315
YWZ9-250/E50 Ed50/6 315-500
YWZ9-300/E23 Ed23/5 300 180-280 1.25
YWZ9-300/E30 Ed30/5 250-400
YWZ9-300/E50 Ed50/6 400-630
YWZ9-300/E80 Ed80/6 630-1000
YWZ9-315/E23 Ed23/5 315 180-280 125
YWZ9-315/E30 Ed30/5 250-400
YWZ9-315/E50 Ed50/6 400-630
YWZ9-315/E80 Ed80/6 630-1000
YWZ9-500/E50 Ed50/6 500 450-1000 1.25
YWZ9-500/E80 Ed80/6 800-1600
YWZ9-500/E121 Ed121/6 1120-2500
YWZ9-500/E201 Ed201/6 2000-4000
YWZ9-600/E121 Ed121/6 600 1800-2800 1.6
YWZ9-600/E201 Ed201/6 2500-4500
YWZ9-600/E301 Ed301/6 4000-6500
YWZ9-630/E121 Ed121/6 630 1800-3150 1.6
YWZ9-630/E201 Ed201/6 2500-5000
YWZ9-630/E301 Ed301/6 4000-7100
YWZ9-700/E201 Ed201/6 700 2500-5600 1.6
YWZ9-700/E301 Ed301/6 4000-8000
YWZ9-710/E201 Ed201/6 710 2500-5600 1.6
YWZ9-710/E301 Ed301/6 4000-8000
YWZ9-800/E301/12 Ed301/12 800 10500-12500 2

Electro-Hydraulic Brake YWZ9-200/E30   YWZ9-300/E30  Ed30/5  YWZ9-315/E80 Ed80/6 0

Products brief introduction:

YT1 series electric hydraulic driving device is a set of motor, centrifugal pump, oil cylinder as a whole, compact structure and drive control device, widely used in various block brake and disc brake driving device.
It can also be used for various industrial valves, gate, directional swing and rotation (90 degrees) device and clamping device drive control.

Meet the standard :
YT1 series hydraulic power to promote the insulation class is B, degree of protection of enclosure for IP54.

Conditions of use:
Ambient temperature -20 ℃ ~ ±50 ℃
Relative temperature: should not be greater than 90%
The surrounding environment may not flammable, explosive and corrosive gases
Using the locations of the altitude with GB755-2000
Outdoor rain erosion or corrosive gas and medium should be used in anticorrosion of failure products.


Please contact our company to get more products details .
