ED-23/5 ED-30/5 Thruster match to Electro-Hydraulic Drum Brakes YT1, YW series

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  ED-23/5 ED-30/5 Thruster match to Electro-Hydraulic Drum Brakes YT1, YW series Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: ED-23/5 ED-30/5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Detailed Product Description
Model: ED-23/5 ED-30/5 Material: Casting Iron
Voltage: 220v , 380v Use To: Load , Crane , Transportion
High Light:

electro hydraulic actuator

,

electromagnetic brakes

YWZ3B Series of Electro-Hydraulic Drum Brakes

Products brief introduction:

The electric hydraulic thruster consists of two parts, the driving motor and the body (centrifugal pump). The body part is composed of cover, cylinder, piston, impeller and rotating shaft.

When energized, the motor drives the transmission shaft and the impeller on the rotating shaft to rotate, generating pressure in the piston. Under the influence of this pressure, the oil is sucked from the upper part of the piston to the lower part of the piston, forcing the piston, the push rod and beam fixed on it to rise rapidly. Mechanical motion is generated by mechanically compressing the load spring (pusher or brake with load spring) through the lever.

When the power is cut off, the impeller stops rotating, and the piston drops rapidly under the action of load spring force and its own gravity, forcing the oil to flow back into the upper part of the piston. At this time, it still returns to its original position through the lever mechanism.

Electric hydraulic thruster is often used with brake frame for braking of various transmission devices.

The company's products are applied in domestic lifting and transportation, port machinery, metallurgical machinery, railway machinery, hydraulic machinery, mining machinery and other industries.

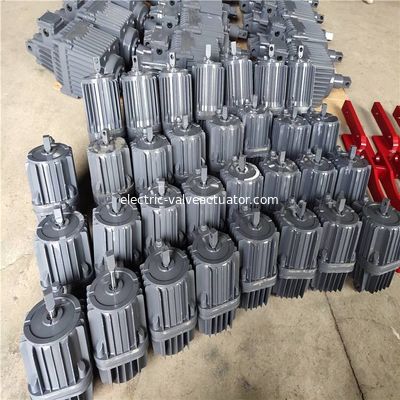

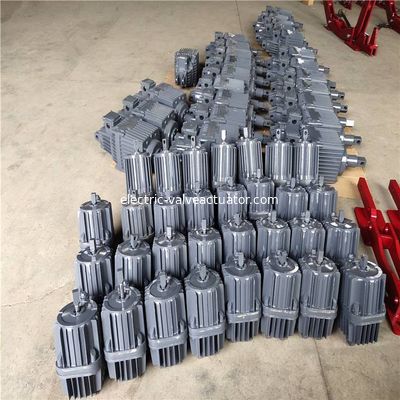

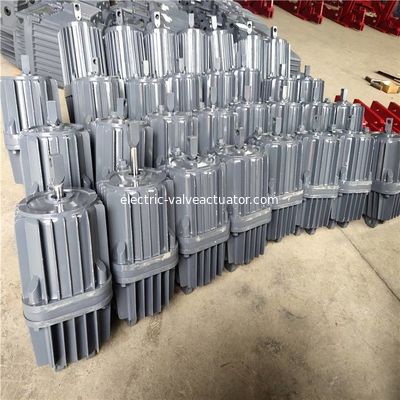

ED-23/5 ED-30/5 Thruster  match to Electro-Hydraulic Drum Brakes YT1, YW series 0



Please contact our company to get more products details .
