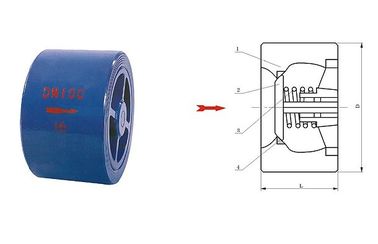

CVWR Cast copper wafer silence check industry system power station valve 100mm

large.img.alt
small.img.alt

Large Image :  CVWR Cast copper wafer silence check industry system power station valve 100mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: RVHXRVCX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box
Delivery Time: Within 15days
Payment Terms: T/T
Supply Ability: 1000pcs / month
Detailed Product Description
High Light:

gate check valve

,

power plant valves

CVWR Cast copper wafer silence check  industry system power station valve 100mm



Product introduction


Water type silence check valve is flow-line designed and pressure loss is very little;

the spring acce-lerates the valve's closing and get silence effect;metal-to-metal seating

is liable and it needs small installation space.It is often installed at the outlet of pump

to prevent water hammering, water hitting and destructive impact and backward flow induced

and protect the related equipments.It is widely used in feeding/draining system, fire

protection, construction, heat supplying and industry system etc..


Main technical parameters


Nominal pressure: 1.0-1.6
Nominal diameter: 40-250mm
Service:water and weak corrosive fluid
Working temperature:0-80
Flanged end: GB/T17241.6 GB9113
Inspection and test: GB/T 13927 API 598


Typical installation diagram


Material



part

body

disc

spring

seat

Material

Cast iron ductile cast iron, cast steel

Cast copper, stainless steel

Stainless steel

Copper, steel




Main dimensions unit:mm



DN

40

50

65

80

100

125

150

200

250

L

45

55

70

75

95

115

135

160

200

D

90

105

125

140

160

195

215

270

325
